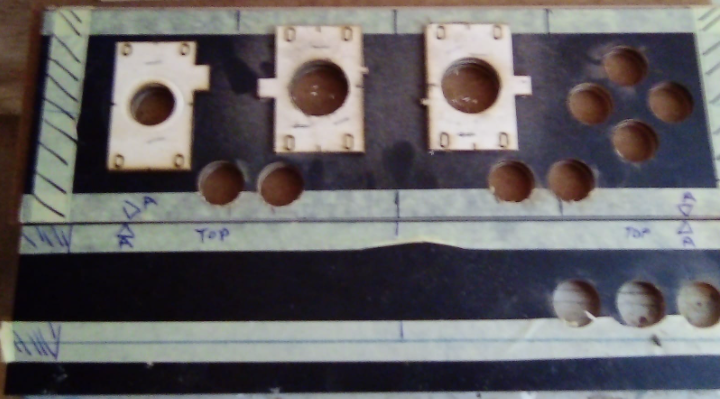

1 - Mount templates on keyboard upper-surface of top-panel.
Attach flanges for joysticks on bottom-surface of top-panel.
Attention: error potential if measuring on bottom-surface of top-panel.

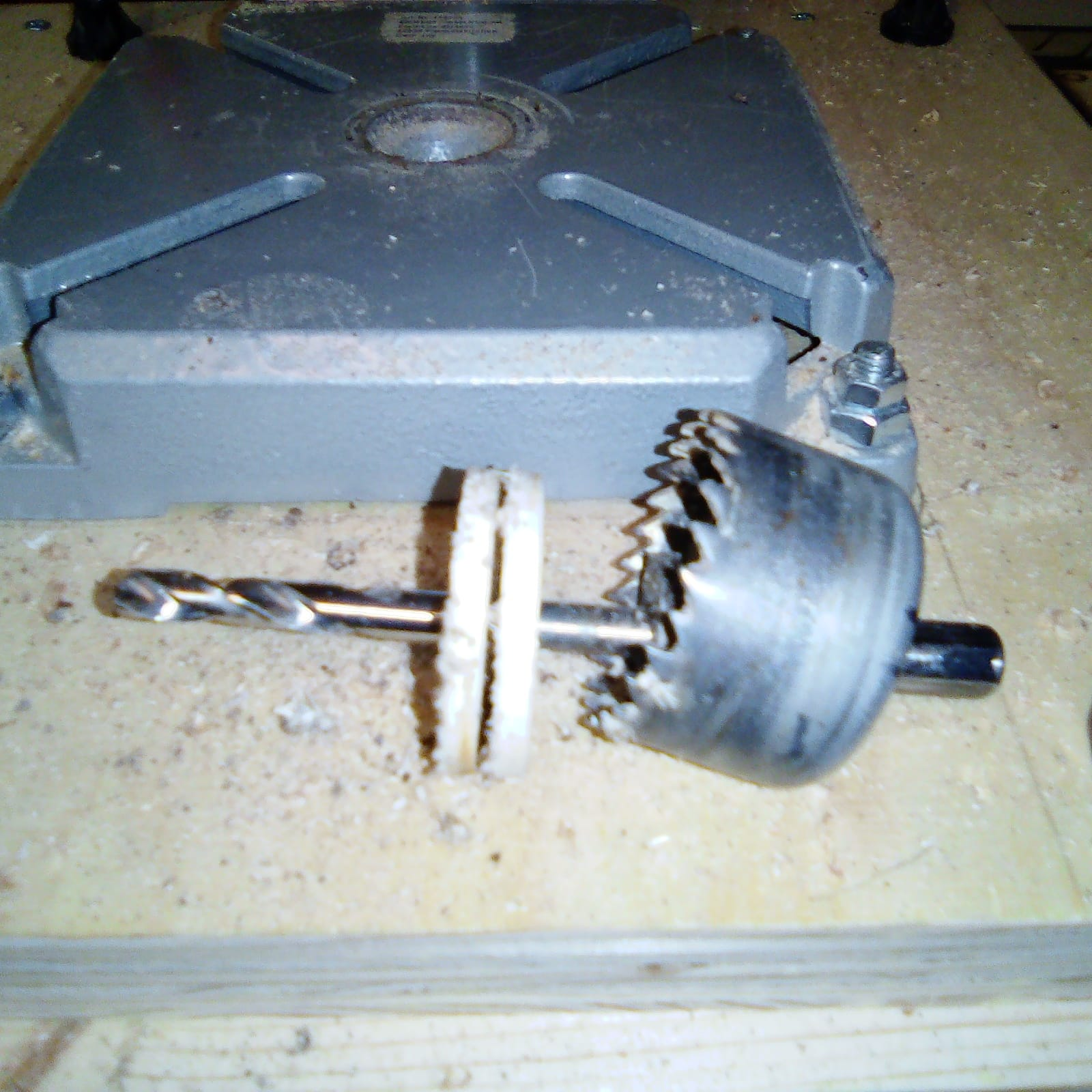

2- Cut all circular holes, 30 mm and 41 mm.
Attention: template should include the center drill marking.
Attention: holes must be cut from both sides to avoid burr.
3- Cut struts to make sidewalls of keyboard.

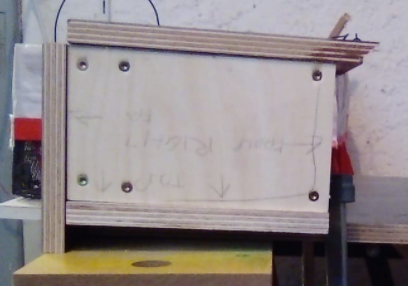

4- Assemble with screws.

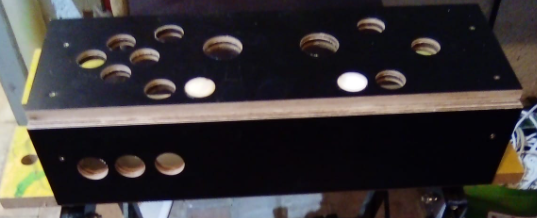

5- Keyboard without plexi shell.
6- mount keyboard cover.
